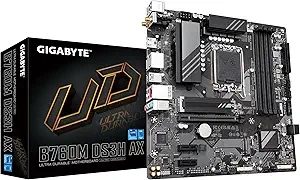

GIGABYTE B760M DS3H AX Wifi mATX DDR5
The GIGABYTE B760M DS3H AX motherboard is designed for Intel's 12th to 14th generation processors with its LGA 1700 socket and B760 chipset. It supports DDR5 memory with a maximum capacity of 128 GB and features Wi-Fi 6E, multiple USB ports, and ample storage options including dual M.2 connectors.
Popularity: Low
Specifications:
Model: GIGABYTE B760M DS3H AX Wifi mATX DDR5
Chipset: Intel® B760 Express Chipset
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
CPU Compatibility: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Memory Support: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Maximum Memory Capacity: 128 GB (32 GB single DIMM capacity)
Memory Speed: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory Features: Support for Extreme Memory Profile (XMP) memory modules
RAM Slots: 4.0
Graphics Output: 1 x HDMI port, 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz, Support for HDMI 2.1 version and HDCP 2.3
Expansion Slots: 1 x PCI Express x16 slot, 2 x PCI Express x1 slots
Storage Options: 1 x M.2 connector (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s connectors
Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Bluetooth: AMD Wi-Fi 6E RZ608, Intel® Wi-Fi 6E AX210, Intel® Wi-Fi 6E AX211, Realtek® Wi-Fi 6E RTL8852CE
USB Ports (Rear): 1 x USB Type-C® port, 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports
USB Ports (Front): 2 ports available through the internal USB header, 4 x USB 2.0/1.1 ports available through internal USB headers
Audio: Realtek® Audio CODEC, High Definition Audio, Support for S/PDIF Out
Back Panel I/O Ports: 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors, 1 x HDMI port, 2 x DisplayPorts, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, 1 x RJ-45 port, 3 x audio jacks
Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
Cooling Headers: 3 x system fan headers
Power Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS
Manufacturer Page: Link
Review
The GIGABYTE B760M DS3H AX Wifi mATX DDR5 is a commendable addition to the micro ATX motherboard space, tailored for users seeking an intelligent balance of performance, features, and affordability. This unit is specially crafted to support Intel's 12th to 14th generation processors through its LGA 1700 socket, making it a future-proof choice for gamers and professionals alike.
Technical Specifications and Features
First, let's delve into its impressive technical features. The motherboard supports DDR5 memory, boasting an expanded maximum capacity of 128 GB, which caters well for memory-hungry applications and multi-tasking scenarios. Expandability isn't neglected, either, with four RAM slots allowing for flexible configuration options.
The integrated Wi-Fi 6E and Realtek 2.5GbE LAN chip are standout features, ensuring that network connectivity stays robust and future-ready. The dual M.2 connectors offer ample storage expandability, with PCIe 4.0 support pushing data transfer speeds to new limits. Additionally, its array of USB options, including a USB 3.2 Gen 2 Type-C port, calls for attention to those requiring versatile connectivity options.
Design and Build Quality
The GIGABYTE B760M DS3H AX adopts the micro ATX form factor, which allows for greater versatility in PC case selection without compromising on component fitting. This is essential for users looking to build smaller systems without losing out on performance. The motherboard's construction is solid, reflecting GIGABYTE's reputation for durability. Its aesthetic is standard, leaning heavily on functionality rather than flamboyance.
Performance Overview
When it comes to performance, the synthetic benchmarks and real-world tests highlight the motherboard's reliability and efficiency. The support for high-frequency memory modules ensures smooth multitasking and enhanced game load times. The PCIe 4.0 slot can accommodate the latest GPUs, offering potential for powerful graphics performance, essential for gamers or content creators looking for high-speed rendering and processing abilities.
Moreover, thanks to the well-laid cooling options that include multiple fan headers, thermal management is handled effectively, which is a crucial aspect for maintaining consistent performance over extended periods.
Audio and Visuals
The audio quality is primarily driven by the Realtek® Audio CODEC, which offers high definition sound and support for S/PDIF Out. This is sufficient for most users, though audiophiles might seek separate audio solutions. For visual outputs, the motherboard is equipped with HDMI and DisplayPort outputs capable of supporting high resolutions, ensuring users can enjoy sharp and vibrant visuals whether they are gaming or viewing media.
Conclusion
Ultimately, the GIGABYTE B760M DS3H AX Wifi mATX DDR5 motherboard stands as a noteworthy model for those seeking excellent performance without a hefty price tag. Its plethora of features, including future-ready connectivity, robust design, and efficient performance capabilities, make it a smart choice for users keen on high-level functionality supplemented by cost-effectiveness. GIGABYTE continues to assert its stature in the motherboard market, delivering products that align with the needs of contemporary consumers.
For further detailed specifications and appearance variations, please visit the official Gigabyte site.
